UBEC 3A -6S Voltage Regulator Hobbywing

Original price $13.99 - Original price $13.99
Original price
$13.99
$13.99 - $13.99
Current price $13.99
Availability:
Only 2 left!

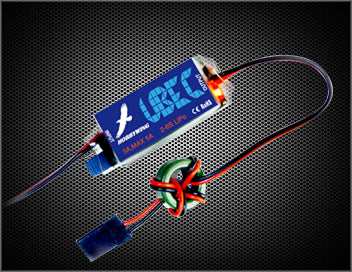

UBEC 3A -6S Voltage Regulator Hobbywing

The 3A-UBEC is a switch-mode DC-DC regulator supplied with a 2-6 cells lithium battery pack (or 5-18 cells NiMH /NiCd battery ), it outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for RC helicopter.

Features:



  • Designed with an advanced switch mode DC-DC regulator IC.
  • The output is powerful even working with 4 to 6 cells Lipo battery.
  • Battery polarity reversal protection.
  • A metal shield covers almost all the electronic components, and a specially made filter is attached with the output wires to significantly reduce the electromagnetic interference.
  • The working status is shown by an indicator (LED), lights when the output is in normal range.
  •

    Specifications:



  • Output Voltage: 5V@3A or 6V@3A (Changeable with an output-voltage select switch )
  • Continuous output current: 3 Amps
  • Input: 5.5V-26V (2-6 cells lithium battery pack or 5-18 cells NiMH /NiCd battery)
  • Size: 43mm*17mm*7mm (L*W*H)
  • Weight: 11g
  •
