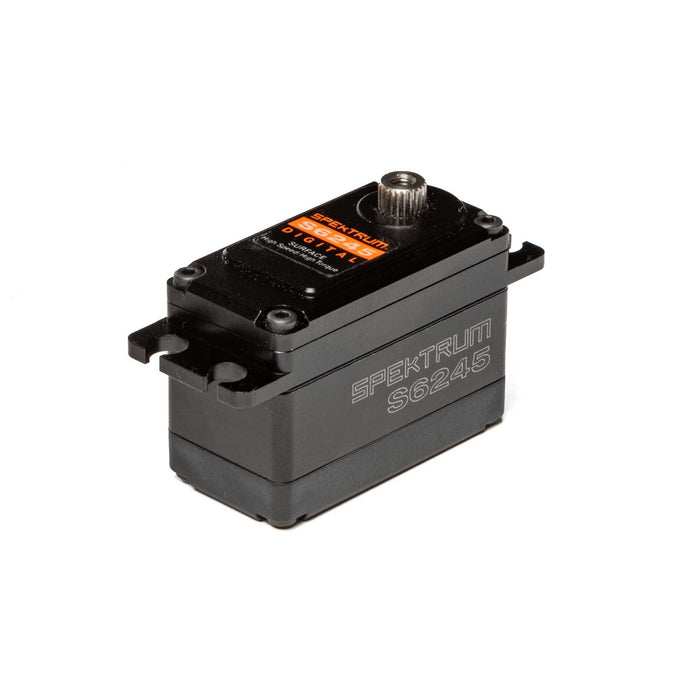

SPMSS6245 Spektrum S6245 Low Profile Digital High Speed High Torque Surface Servo
by Spektrum
Sold out
Original price
$129.99
-
Original price
$129.99
Original price
$129.99
$129.99
-
$129.99
Current price
$129.99
Availability:
Out of stock
$129.99
The S6245 servo features a black anodized aluminum case for durability and heat dissipation. The low-profile design allows for space saving installation, making it the perfect servo for 1/10 racing buggies and trucks, bashers looking to upgrade their RTR vehicle, or for crawlers that need that extra speed and torque to push through demanding terrain. The 7075 hard anodized aluminum 23-tooth output shaft and gear is matched with steel internal gears for the utmost in durability and precision. Removable wire harness is 2 inches and different lengths are available.
Features
Stylish stealth black and silver anodized aluminum case*
Aluminum case provides great heat dissipation
High Voltage HV compatible (7.4V/2S Max)
*Improved torque and speed
*Removable wire harness with different lengths availableImproved gear design for added durability
*7075 Aluminum hard anodized output shaft/main gear with steel internal gears
Includes 2 inch extension for easy minimum wire installs
Robust aluminum mounting tabs
NMB dual main output shaft bearings
23T output shaftWaterproof
1-Year Limited Warranty
- Application
- Surface
- Bearing
- Dual
- Bushing Or Bearing
- Bearing
- Connector Wire Length
- 2.0 in (51mm)
- Gear Type
- Metal
- Material
- Metal
- Maximum Servo Torque
- 206 oz-in (14.8kg-cm) @ 6V, 266 oz-in (19.2 kg-cm) @ 7.4V
- Part Type
- Electronics
- Product Application
- Surface
- Product Height
- 1.18 in (30mm)
- Product Length
- 1.61 in (41mm)
- Product Weight
- 2.2oz (62.37g)
- Product Width
- 0.82 in (20.8mm)
- Programmable
- No
- Servo Operating Voltage
- 6.0 - 7.4V (HV)
- Servo Size Category
- Low Profile
- Servo Type
- Digital
- Type
- 6245 1/10
