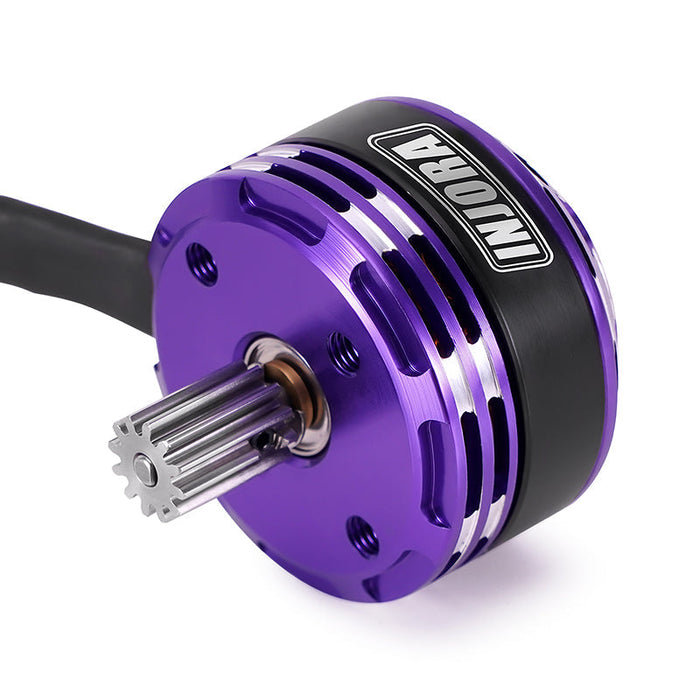

INM18-2400KV INJORA Fat Viper 2204 Brushless Outrunner Motor with Mount for 1/24 SCX24

INJORA Fat Viper 2204 Brushless Outrunner Motor with Mount for 1/24 RC Crawler Axial SCX24

Note:

• Transmission: Compatible with stock SCX24 transmission and INJORA metal transmission (This kit does not include a complete transmisson, so a transmisson is required!)
• Chassis: Compatible with INJROA SCX24 LCG carbon fiber chassis. Need to cut the ESC tray to make room for installing the brushless kit on stock SCX24 chassis.
• ESC: Compatible with INJORA MBL32 brushless ESC. Not compatible with stock SCX24 ESC!
• 3S batteries are highly recommended for high torque.
• The higher the KV value: the higher the speed, the lower the torque.

Features:

• Runs more quietly than brushed systems.
• Smooth and linear at low speeds, powerful and aggressive at high speeds.
• 2204 Fat Viper Outrunner Motor will give your car a better driving performance.

MBL32 ESC Specifications:

• Part Number: MBL32
• Max.Current: 30A
• LiPo Cells: 2-3s
• BEC: Max 3A
• BEC Output: 6.0v/7.4V (adjustable by DiP switch)
• Motor Connectors: PH2.0 3Pin
• Dimensions(L*W*H): 30*22*11mm
• Weight: 16g
• Waterproof: No
• The ESC is compatible with most of the receiver and remote combinations that with CH2
• Instruction Manuals
• Please be sure to adjust the MBL32 ESC settings according to the parameters of the 2204 motor as detailed in our Programming Tutorial
• Never plug the battery upside down, otherwise the ESC will immediately burn out！

2000KV Motor Specifications:

• Model Number: 2204
• Motor Type: Sensorless Brushless Outrunner
• RPM/Volt: 2000KV
• Motor Poles: 14
• Sine Mode Power: 7
• Max Power: 2000W
• No-Load Current: 0.5A
• Max Peak Current: 45A
• Motor Connectors: PH2.0 3Pin
• Dimensions: Φ28*19.2mm
• Motor Qutput Shaft: Φ2mm
• Motor Pinion: 0.5mod 12T
• Weight: 28g

2400KV Motor Specifications:

• Model Number: 2204
• Motor Type: Sensorless Brushless Outrunner
• RPM/Volt: 2400KV
• Motor Poles: 14
• Sine Mode Power: 7
• Max Power: 2500W
• No-Load Current: 0.7A
• Max Peak Current: 50A
• Motor Connectors: PH2.0 3Pin
• Dimensions: Φ28*19.2mm
• Motor Qutput Shaft: Φ2mm
• Motor Pinion: 0.5mod 12T
• Weight: 28g

Motor Mount Specifications:

• Housing Material: Aluminum, Carbon Fibre
• Gears Material: Stainless Steel
  Internal Gears: 0.5mod 32T

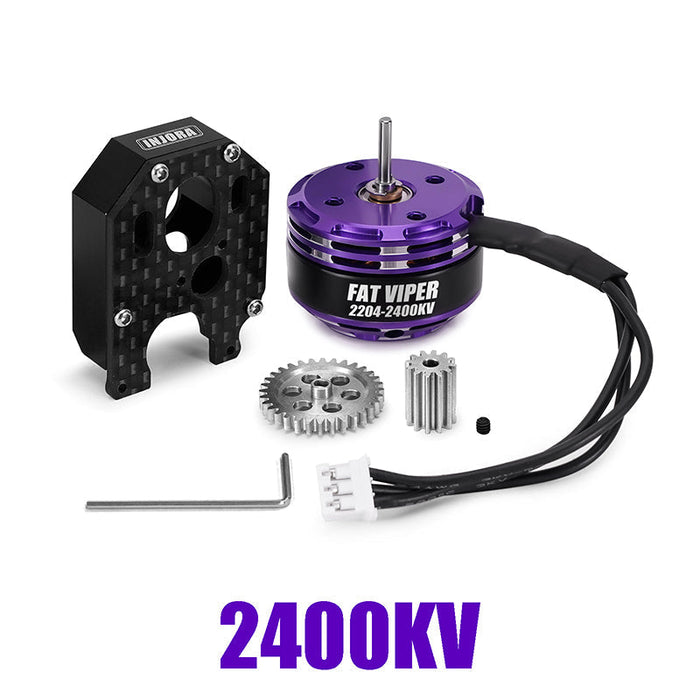

Package List:

• 1 * Fat Viper 2204 Brushless Motor
• 1 * Motor Pinion 12T
• 1 * Motor Mount with 32T Gear
