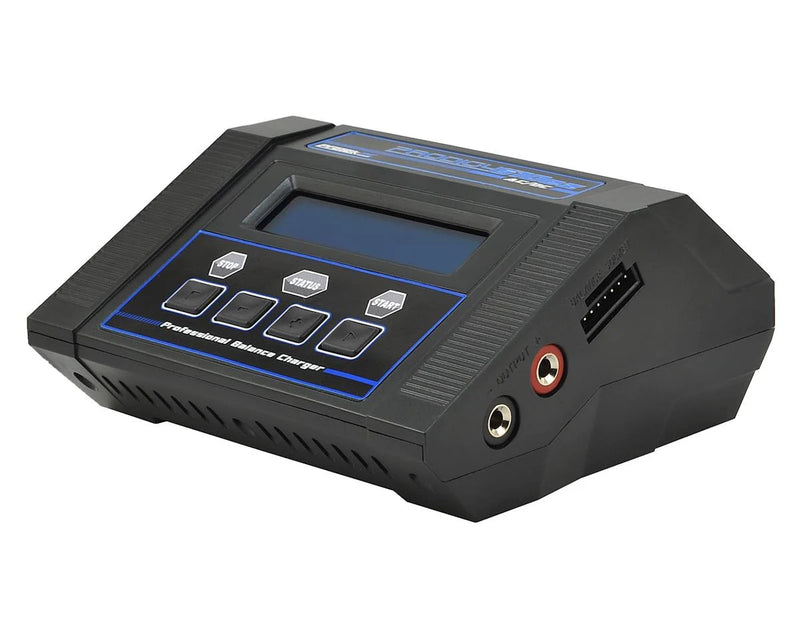

PTK-8522 ProTek RC "Prodigy 610ez AC/DC" LiHV/LiPo Balance Battery Charger (2-6S/10A/100W)
PTK-8522 ProTek RC "Prodigy 610ez AC/DC" LiHV/LiPo Balance Battery Charger (2-6S/10A/100W)
Hi-Voltage Capable
This charger features a Hi-Voltage LiHV mode that allows you to safely charge Hi-Voltage LiHV capable batteries. You can adjust the charging end voltage of this mode up to 4.40V per cell, which is considerably higher than 4.20V per cell of an ordinary LiPo battery. Charging at this higher end voltage requires a Hi-Voltage LiHV capable battery, but the power gains are significant to the overall punch and power for the R/C model. But please note: battery voltages exceeding 4.20V per cell is prohibited from sanctioned racing rules, such as ROAR, IFMAR, etc.
Dual Power Input
The power source can be 11-18V DC input or a 100-240V AC source. With a builtin power supply, users can directly connect the AC power cord to the main AC input. The power supply can accept AC power from all over the world without the worry of damage.
Features:
Single Channel Digital AC/DC Balance Charger
Maximum 10A Charge Current, up to 100W
Hi-Voltage LiHV charging mode allows charging end voltage up to 4.40V
Supports up to 6S Lithium & 15 Cell Nickel Battery Packs
Lithium, Nickel & Lead Acid Compatible
Multiple Safety Functions
Multiple Charge Modes
Back-Light Screen
Small & Lightweight Portable Design
Measure the Internal Resistance of Battery Pack
Specifications:
AC Input Voltage: 100V-240V
DC Input Voltage: 11V-18V
Chemistry: LiPo, LiFe, LiHV, NiMH, NiCd, Pb
Cell Count: LiPo/Li-Ion/LiFe/LiHV: 1-6S; NiMH/NiCd: 1-15 cells; Pb: 2-24V
Voltage Cutoff (per cell): LiPo: 4.18-4.22V; Li-Ion: 4.18-4.20V; LiFe: 3.68-3.8V; LiHV: 4.30-4.40V
Display: LCD; blue back light (non-touch)
Dimensions: 130x115x61mm
Charge Current: 0.1A-10A
Charge Power: 100W max.
Balance Current: 400mA/cell
Cooling System: Fan
Weight: 380g
Safety Timer: 1-720min or off
Discharge Current: 0.1A-2.0A
Discharge Power: 5W max.
Memory: 10 different profiles
Includes:
(1) Prodigy Prodigy 610ez AC/DC Charger
(1) T-Style Charge Lead
(1) DC Input Wire
(1) Balance Board
(1) Instructions
