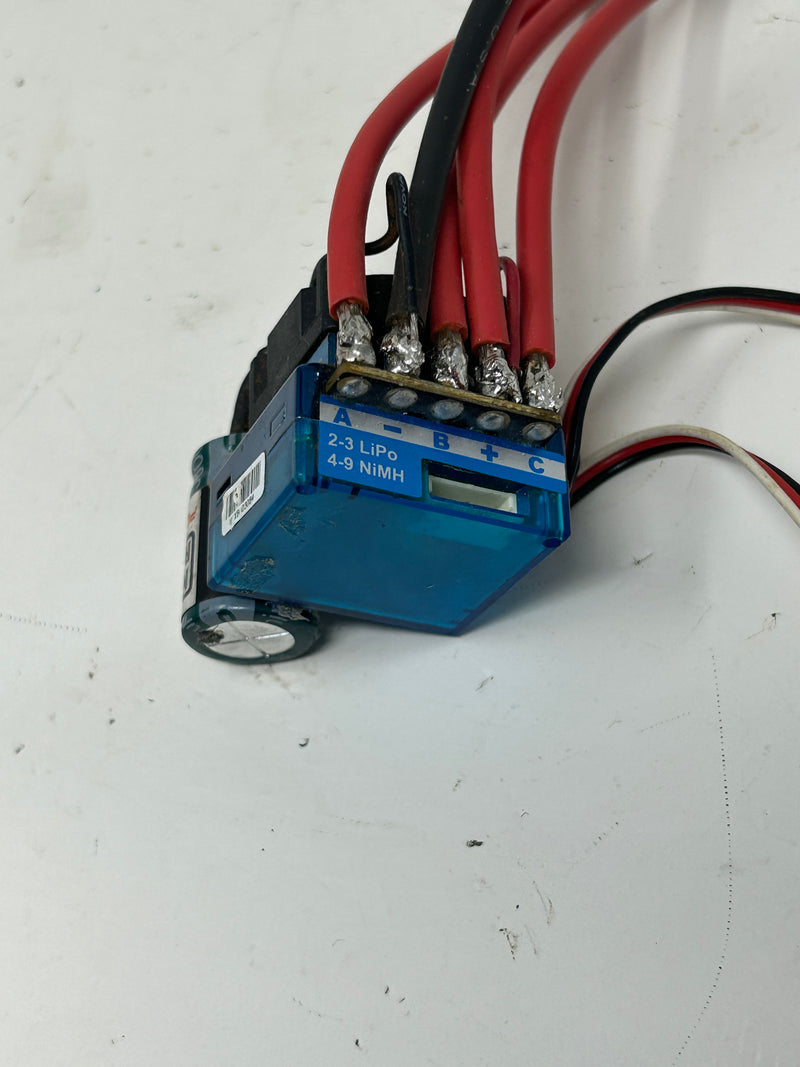

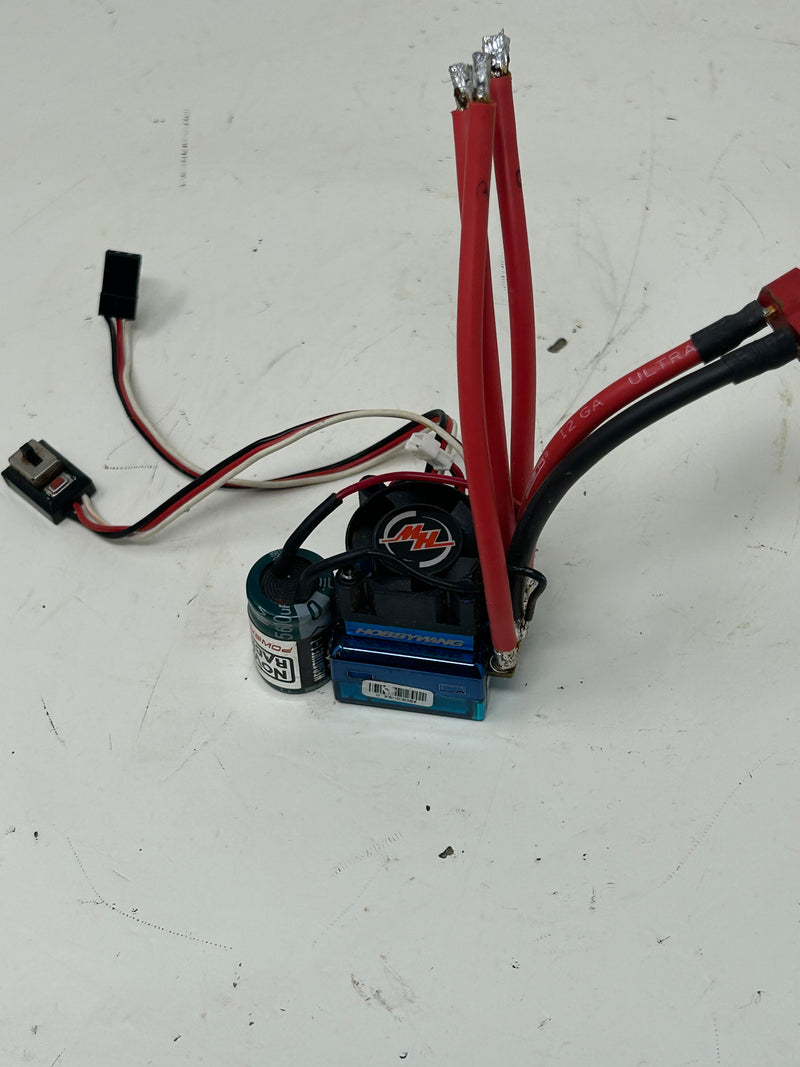

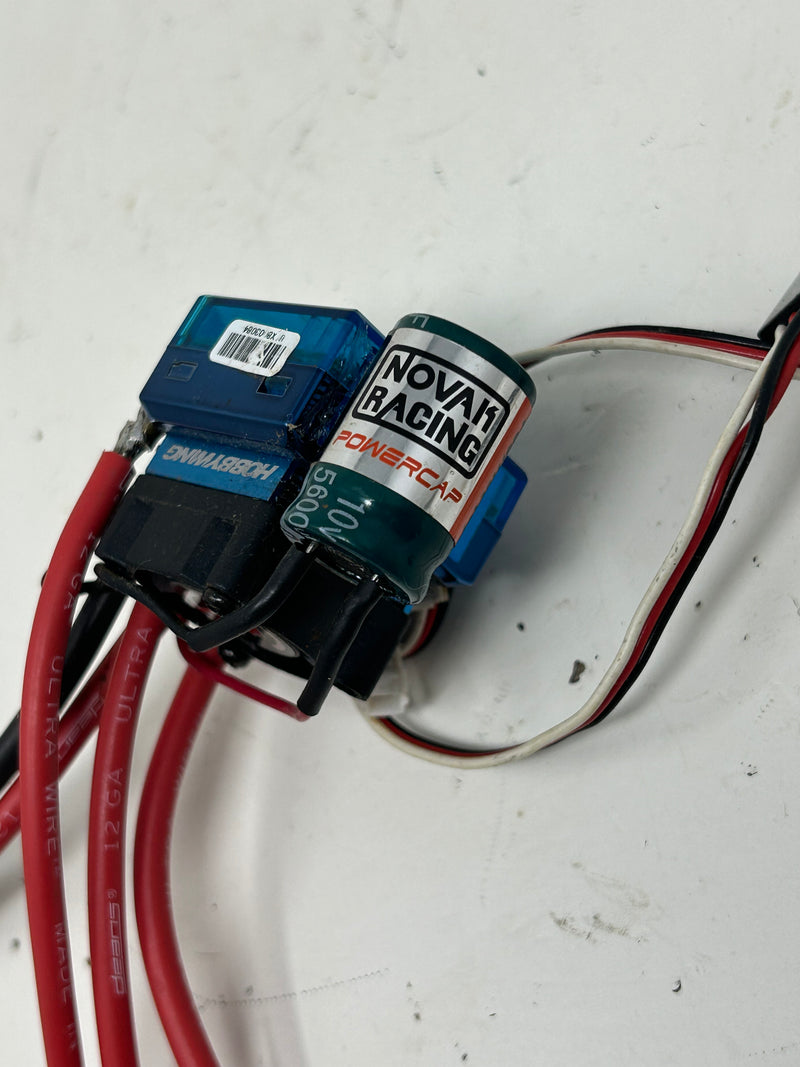

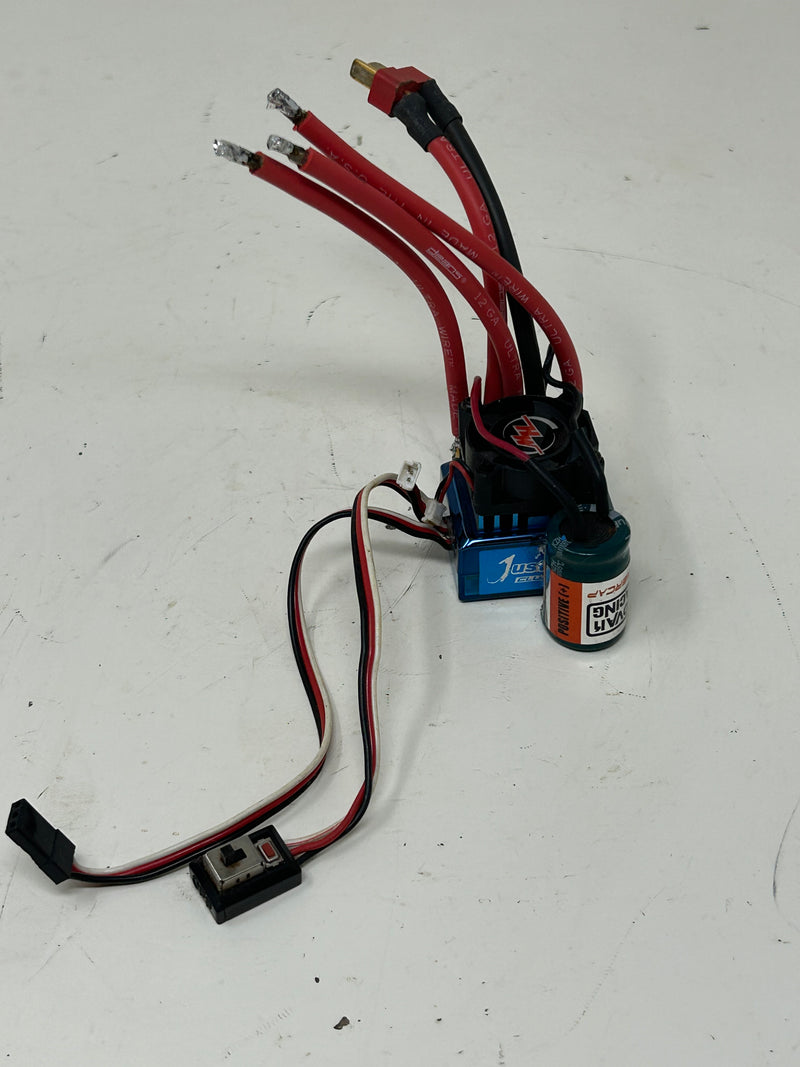

Used Hobbywing Justock Club Spec Sensored Brushless ESC (Blue)
Used Hobbywing Justock. Tested and working.
See pictures for more detail.
Specifications:
Output: Continuous 45A, burst 260A.
Input: 4-9 cells NiMH/NiCd or 2-3S LiPo.
BEC: 6V@2A linear mode built-in BEC.
Resistance: 0.0006 Ohm.
Motor Supported: Sensored and sensorless brushless.
Cooling Fan: 5V (The cooling fan gets its power supply from the built-in BEC)
Suitable Motor:
- With 2S Lipo or 4-6 cells NiMH, 1/10 on-road>=8.5T, 1/10 off-road>=11.5T
- With 3S Lipo or 7-9 cells NiMH, 1/10 on-road>=13.5T, 1/10 off-road>=17.5T
Suitable Car: 1/10, 1/12 on-road or off-road SPEC race (Zero timing race), 1/10 rock crawler pro race.
Size: 33mm(L) * 28mm(W) * 31mm(H) (Cooling fan height included)
Weight: 59g (The weight of cooling fan is not included)
