91076-4 Traxxas TRX-4 Chevrolet Blazer with Interior

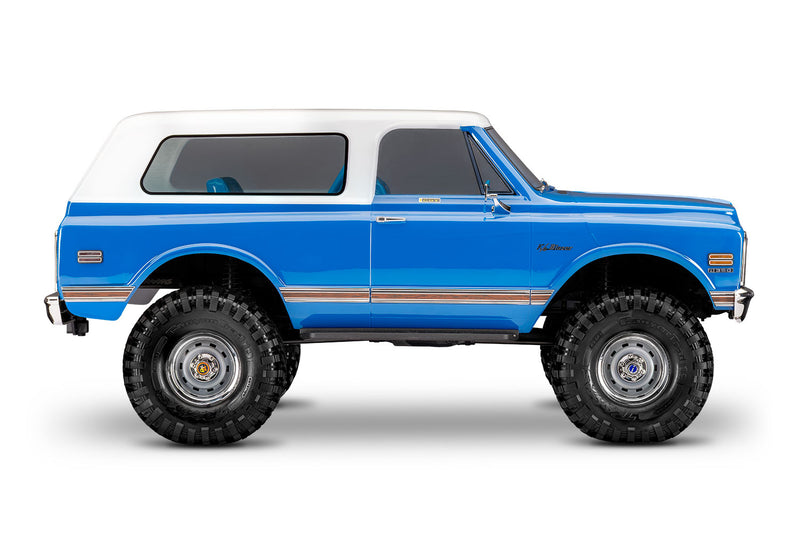

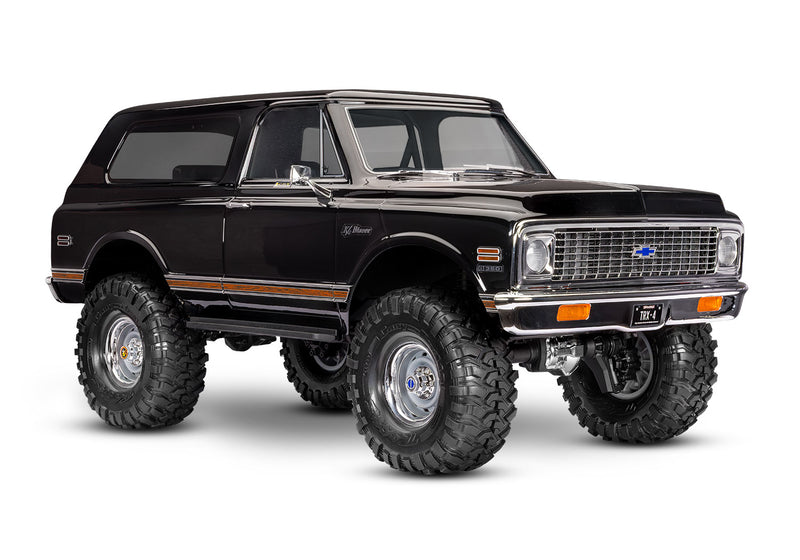

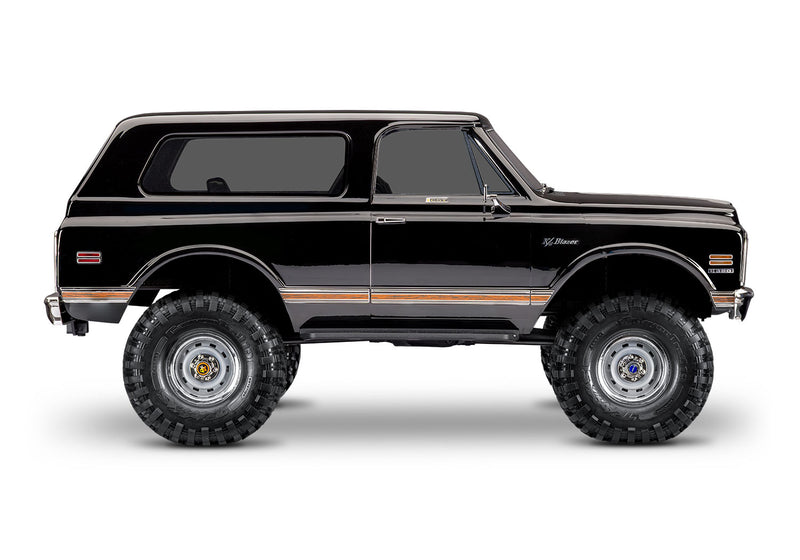

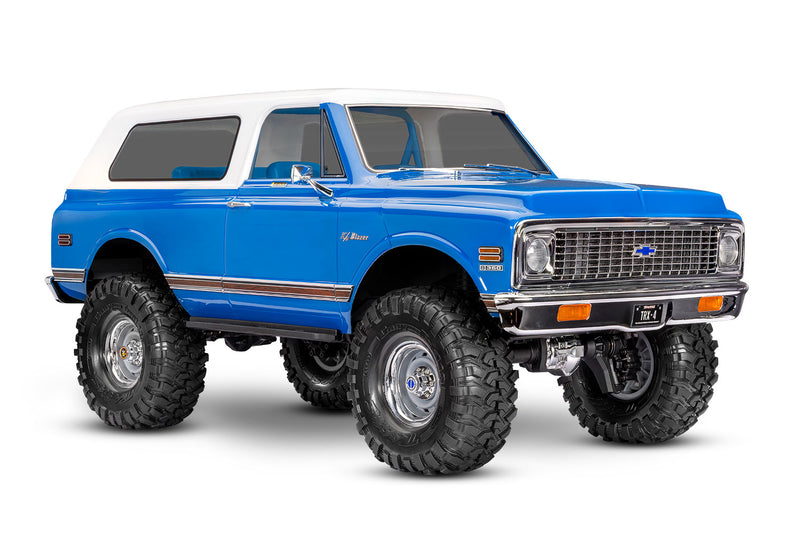

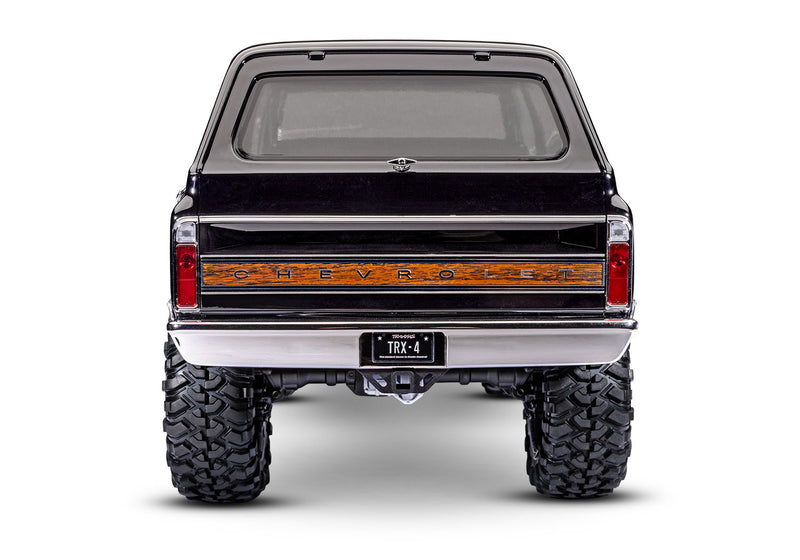

Officially Licensed 1972 Chevrolet Blazer Clipless Body with Interior

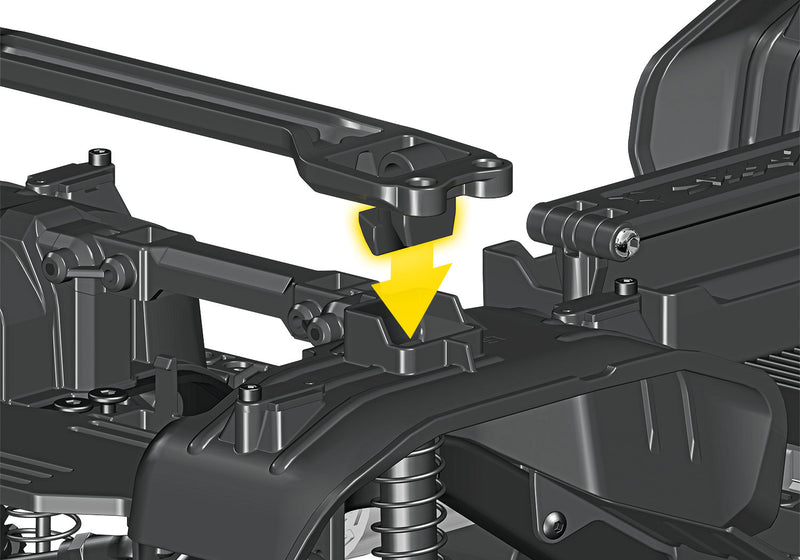

• • Clipless body holds tight on the trail, but releases in seconds
  • Smooth body lines uninterrupted by body clips

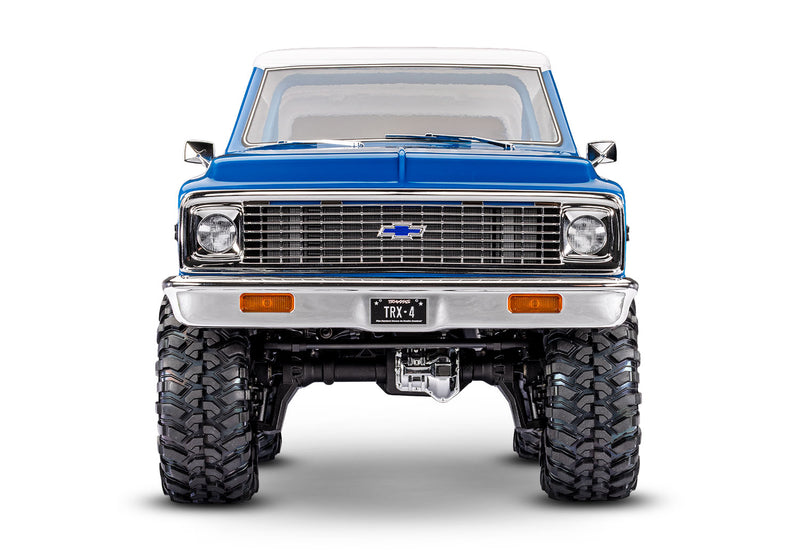

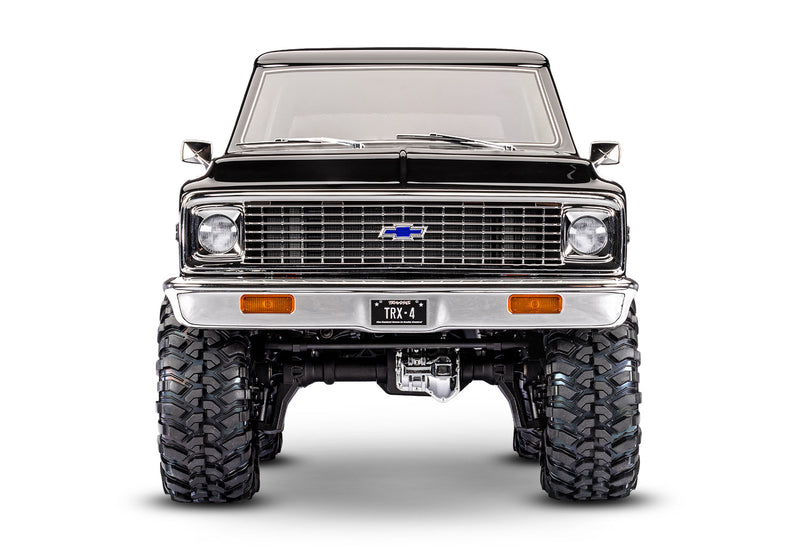

  • Scale details: grille, chrome bumpers, side mirrors, chrome side trim, and wipers

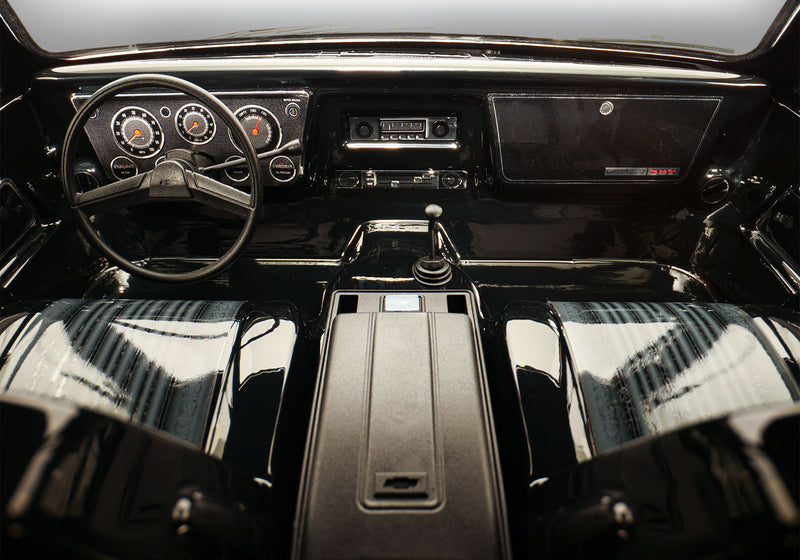

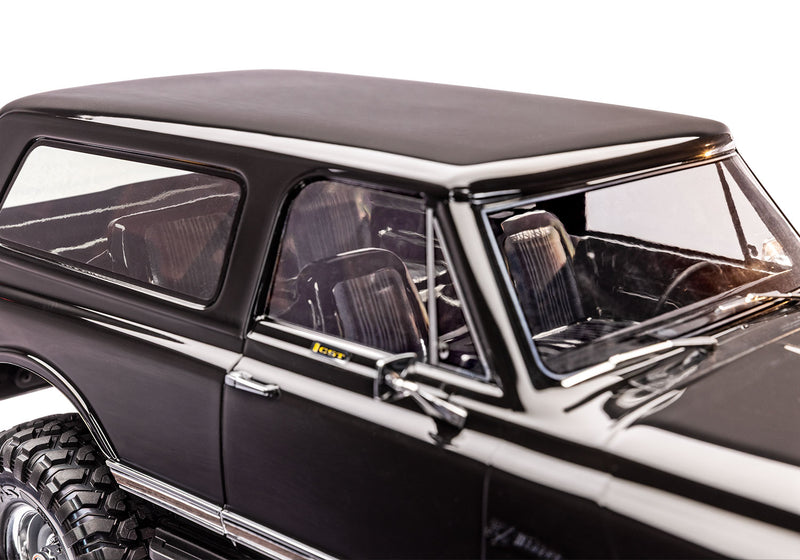

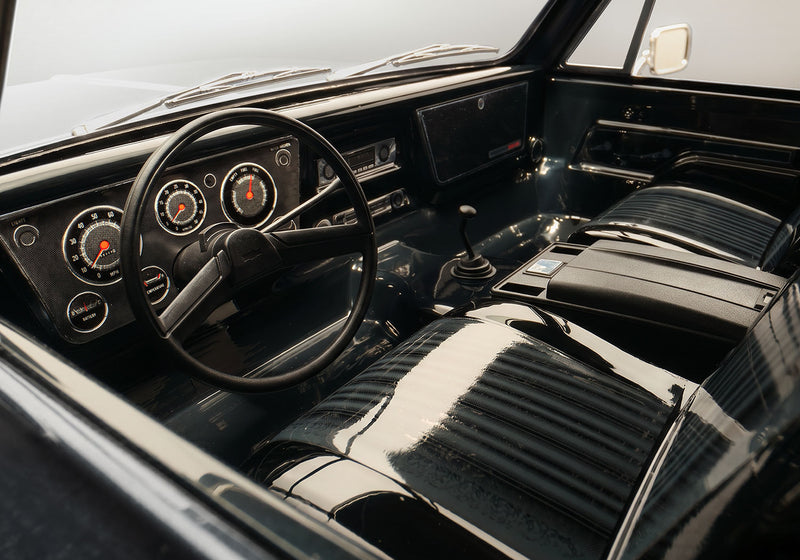

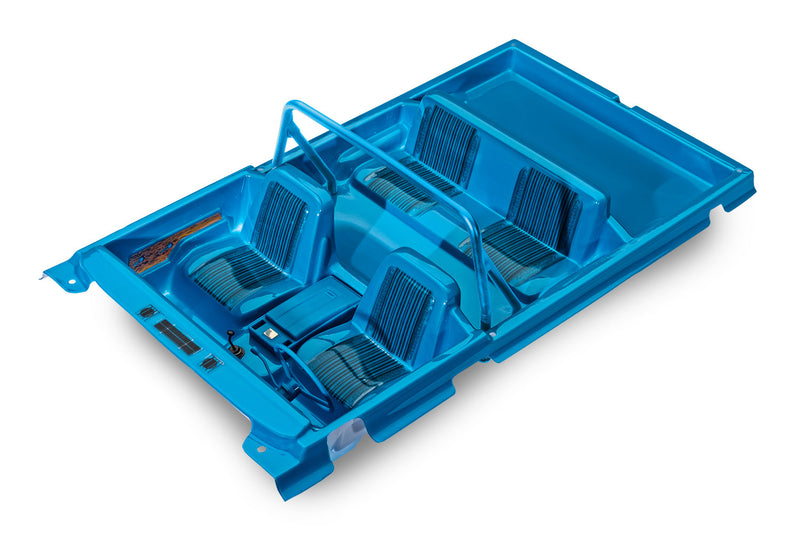

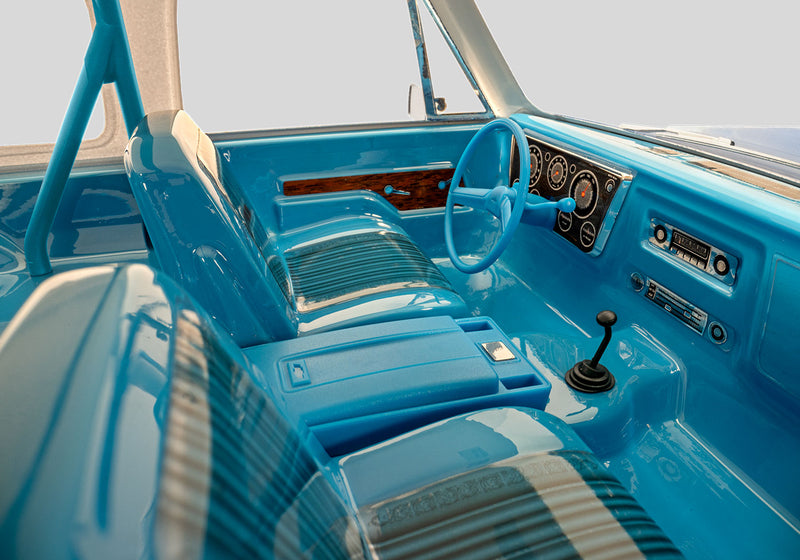

  • Interior with steering wheel, center console, shifter, and authentic decals
  • Clear windows

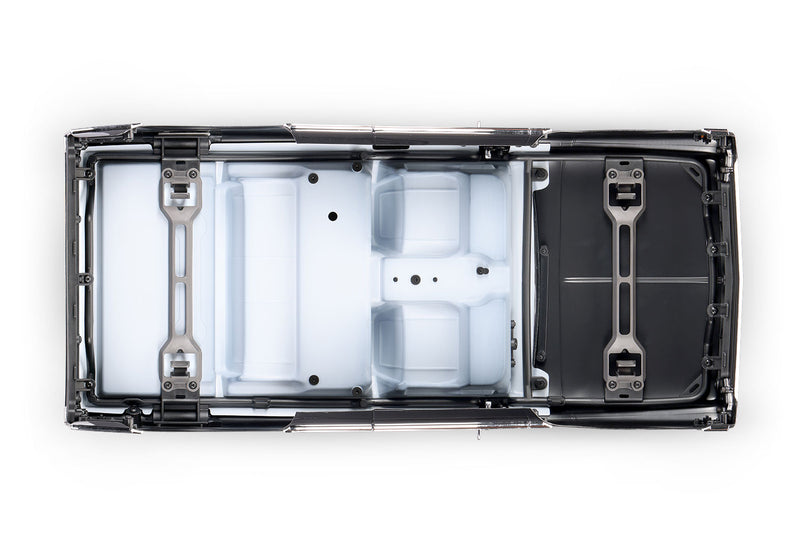

  • Full wheel wells and floor pans

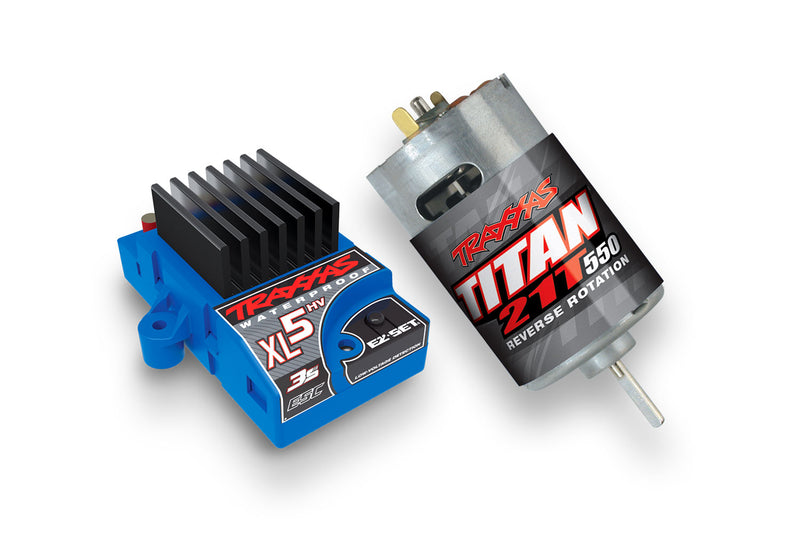

• Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
  • Five drive profiles
    • Sport Mode — forward / brake / reverse
    • Race Mode — forward / brake / no reverse
    • Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
  • Traxxas EZ-Set^® one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6–7 cell NiMH, 2–3s LiPo
• Titan^® 550 Motor
  • Powerful Titan 21T reverse rotation motor with internal cooling fan
  • Precision, preset gear mesh adjustments
  • Motor retention separate from gear mesh

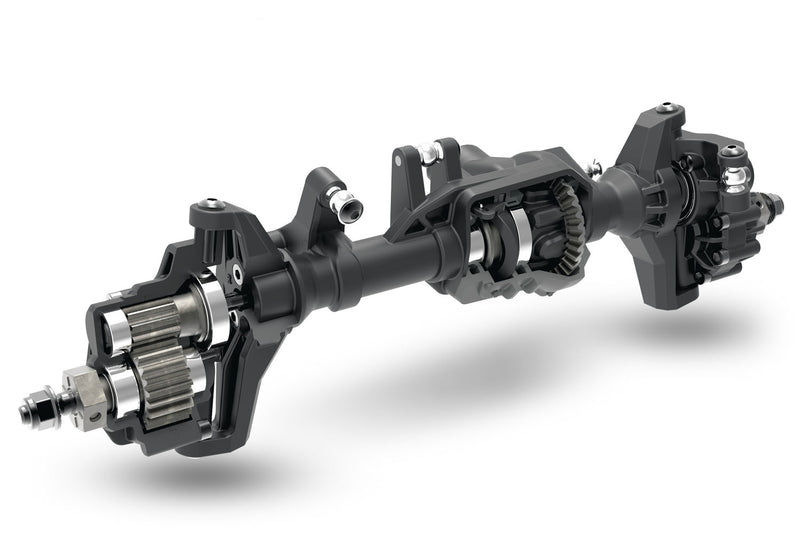

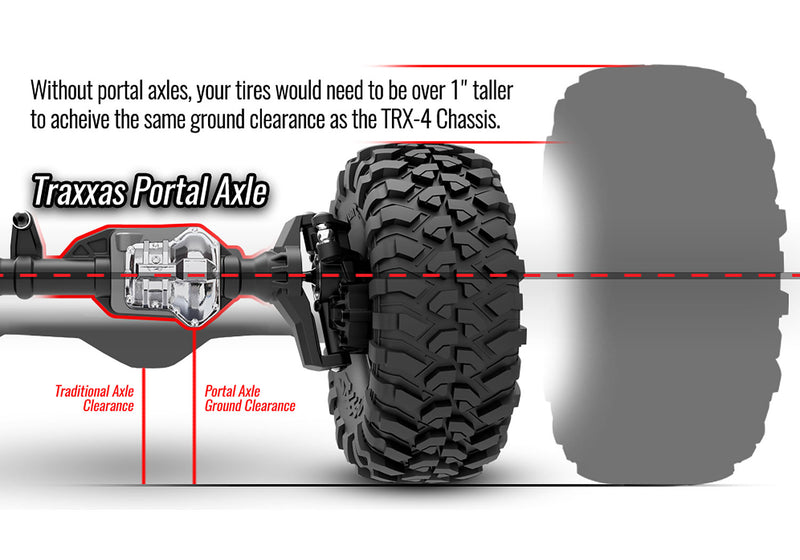

• Portal Axles
  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts

• TQi™ 2.4 GHz Radio System
  • 4-channel transmitter
  • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
  • Compatible with optional Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Patented waterproof receiver box with easy-access plug

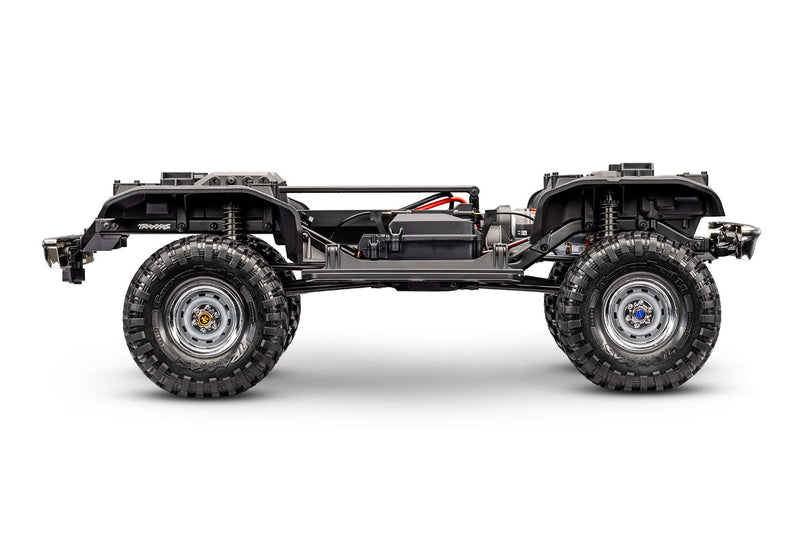

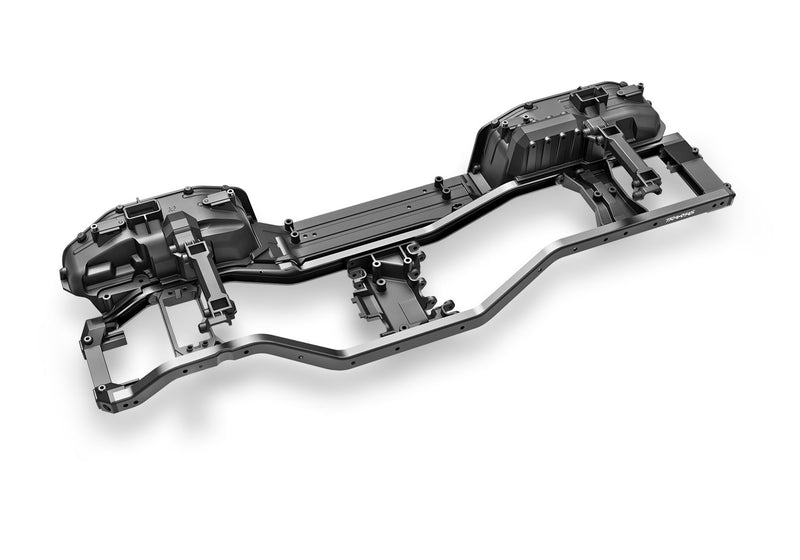

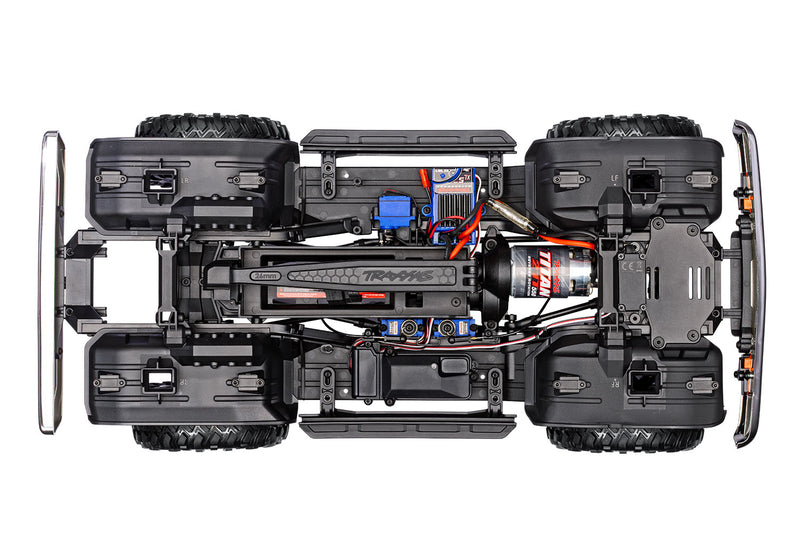

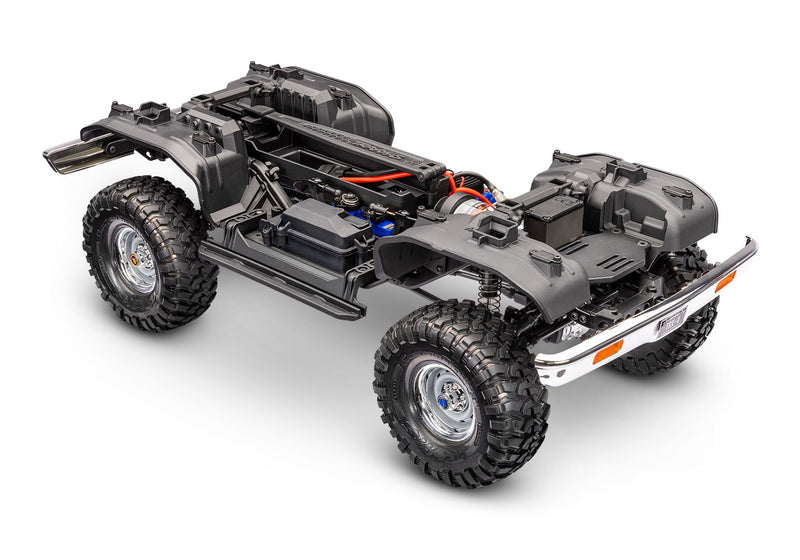

• Rigid Steel Frame
  • 1.5 mm thick steel frame rails increase torsional rigidity
  • Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
  • Adjustable rear shock tower positions for SWB and LWB configurations
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
• Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries
  • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

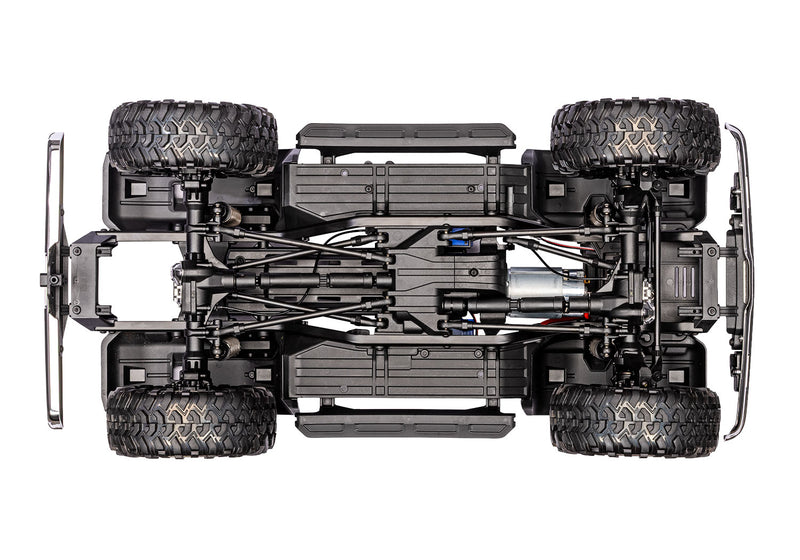

• Driveline
  • Full-time shaft driven 4-wheel drive
  • Tough 6 mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts

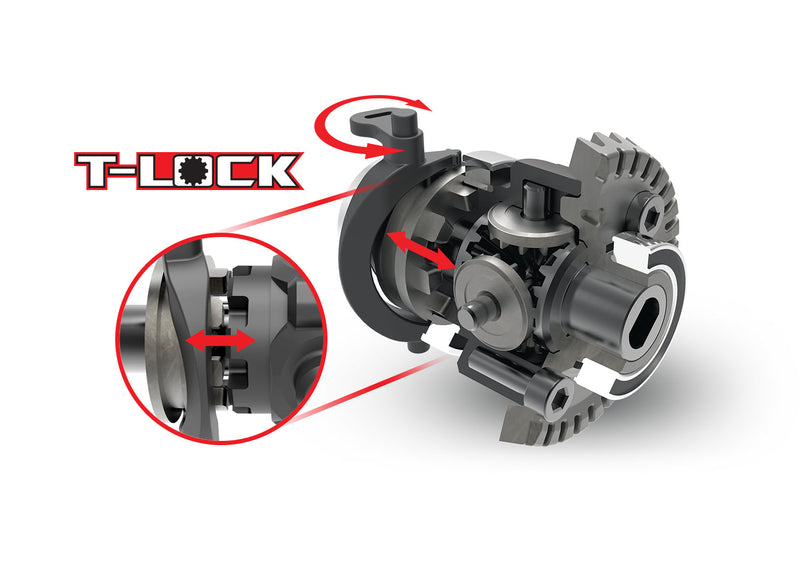

  • Remote locking steel gear differentials with cable-actuation
  • Steel transfer case gears

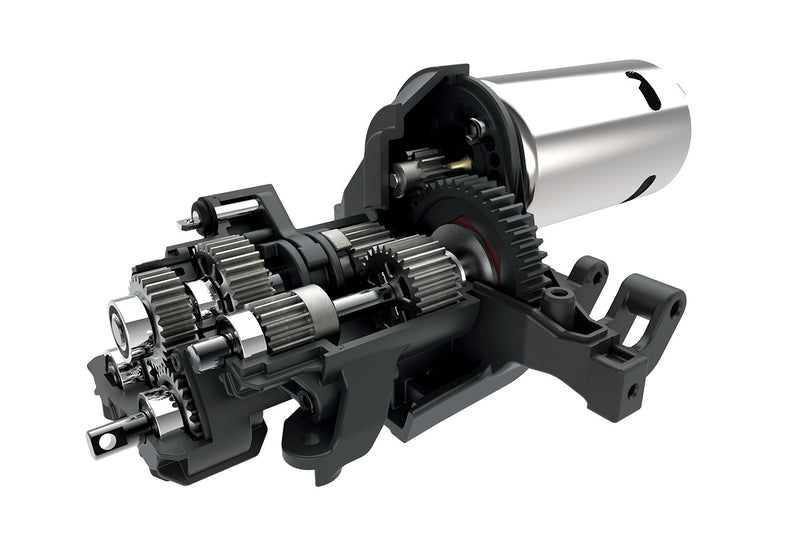

• Transmission
  • Two speed high/low range with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing

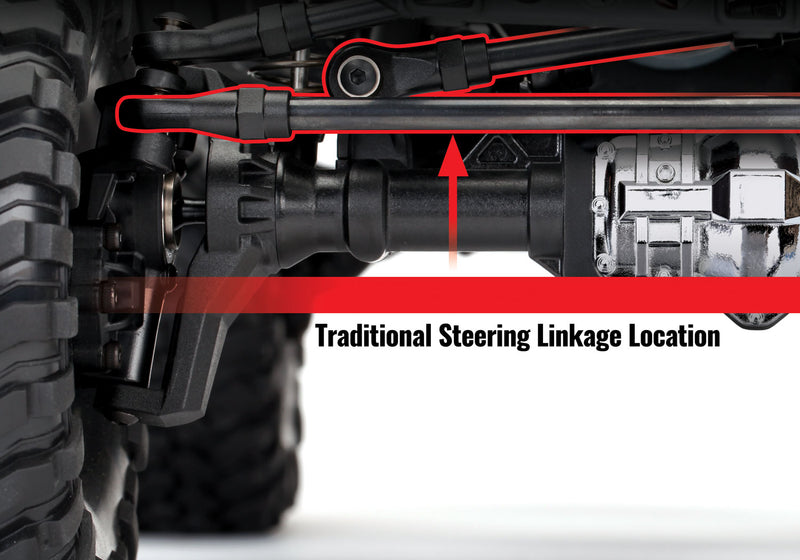

• Steering

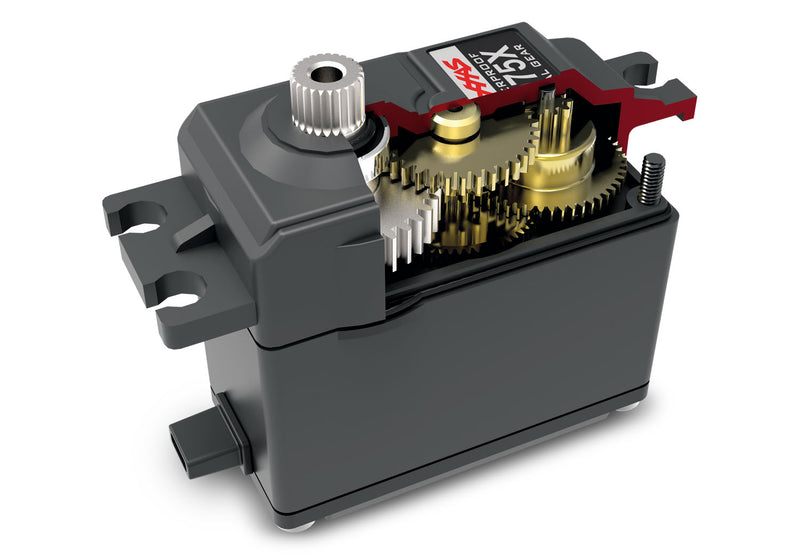

  • Chassis mounted 2075X metal gear digital servo

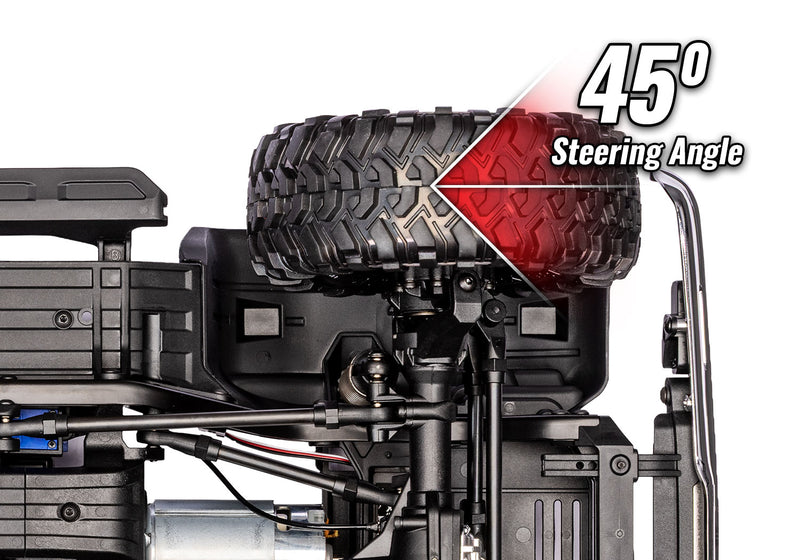

  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
  • Front — 3 link with panhard
  • Rear — triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls

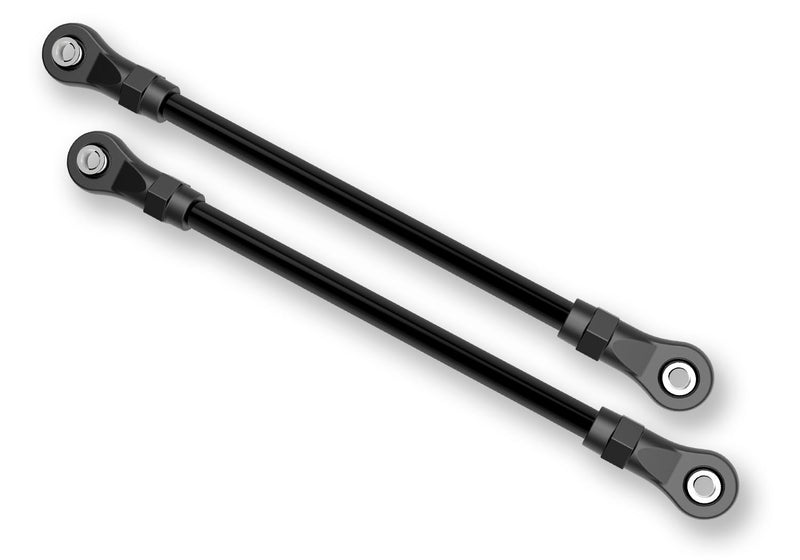

  • 5 mm diameter steel link rods with 4 mm threaded ends

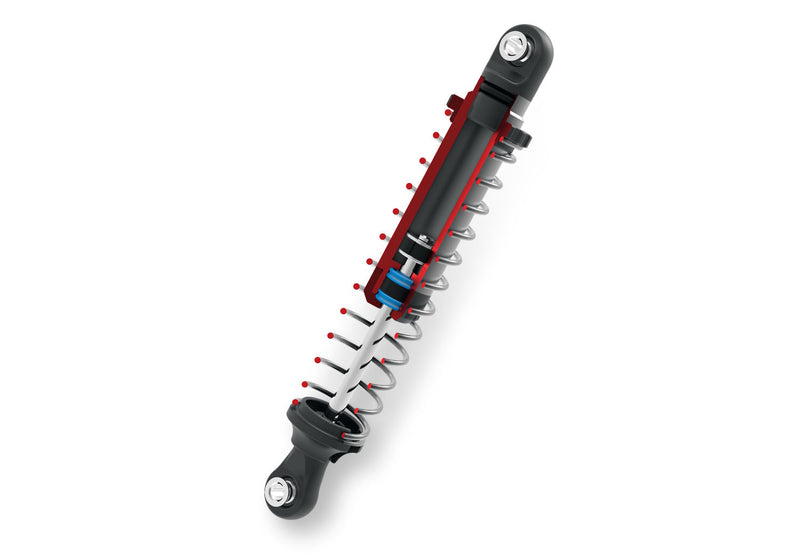

• Aluminum GTS Shocks
  • Oil-filled coilover GTS shocks
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
• Wheels and Tires
  • 1.9" replica chrome wheels
  • Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
  • Trail tuned S1 rubber compound
  • 12 mm steel hex
• Sealed Ball Bearings
• Hex hardware with rust-resistant black oxide coating
