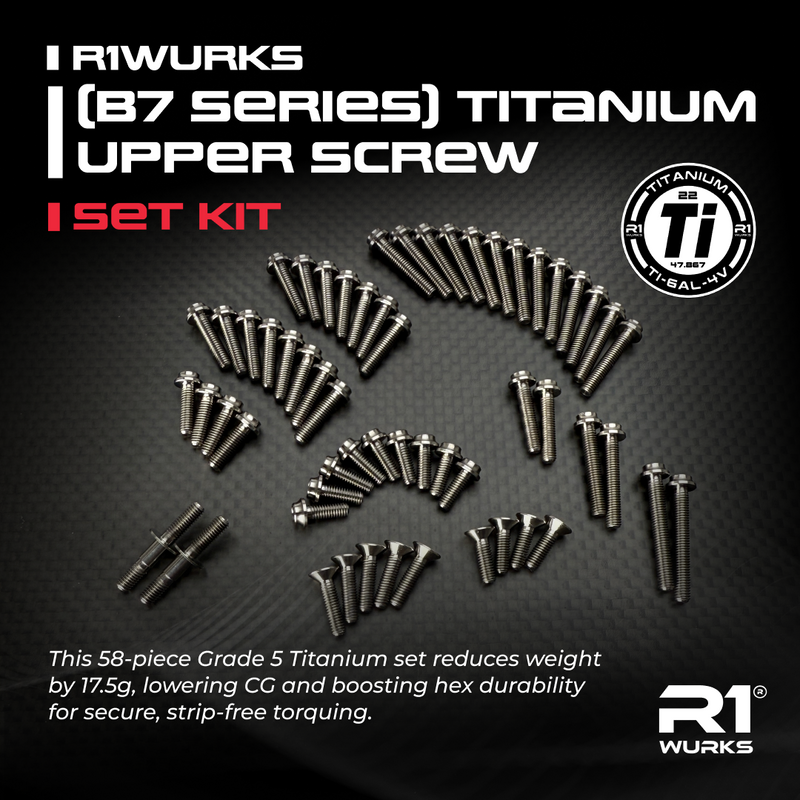

900051 R1WURKS (B7 Series) Titanium Upper Screw Set

R1WURKS Premium Titanium B7 Upper Screw Kit

This 58-piece set replaces the upper steel screws with lightweight, ultra-high quality Grade 5 (6Al-4V) Titanium screws. Not only will this set lower the CG of your vehicle with a weight reduction of 17.5 grams, but you’ll also benefit from increased hex durability of the precision-broached 2.5 hex socket button head screw, allowing you to torque the screws without the worry of stripping out the hex.

Features and Specifications:

• Ultra-High precision swiss machining
• High-strength grade 5 (Ti-6Al-4V) titanium
• Tight tolerance hex broaching
• Cold-formed threads for improved grain structure and increased material hardness
• Titanium Lower Shock Mounts included
• 2.5mm hex provides higher torque capacity and greatly reduces the risk of stripping
• Lightweight head design
• Reduced center of gravity
• 17.5 grams lighter than steel hardware

Kit Includes:

(Please refer to the manufacturer's manual for details on where each screw is used, with corresponding page numbers and steps provided below)

M3x8mm (9pcs)
x8 Steering  and camber plates – Page 9, Step 2
x1 Rear Gearbox cap center top – Page 12, Step 3

M3x10mm (4pcs)
x4 Battery holder, left and right – Page 20, Step 3

M3x12mm (15pcs)
x4 Left and right rear hubs – Page 14, Step 1
x7 Rear shock tower – Page 13, Step 6
x2 Steering rack – Page 5, Step 2
x2 Optional Low Profile Battery latches – Page 20, Step 3

M3x14mm (2pcs)
x2 Steering knuckle top – Page 9, Step 3

M3x16mm (13pcs)
x3 Front top plate – Page 7, Step 5
x4 Gearbox case – Page 11, Step 1
x4 Gearbox cap – Page 12, Step 3
x2 Steering knuckle bottom – Page 9, Step 3

M3x18 (2pcs)
x2 Standard profile battery latches - Page 20, Step 3

M3x22mm (2pcs)
x2 Front lower shock mounting screws – Page 18, Step 7

M3x10mm Flat Head (4pcs)

x4 Front shock tower – Page 8, Step 8

M3x12mm Flat Head (5pcs)

x3 Motor Mount – Page 12, Step 4
x2 Wing Mount – Page 21, Step 5

Titanium Lower Shock Mounts (2pcs)

x2 Rear suspension arm shock mounts - Page 9, Step 1

Lower Shock Mount Instructions: For easier installation of the shock mounts, pre-thread the arm mounting holes using a steel screw. For harder materials like carbon-filled nylon, it's recommended to pre-thread the holes and apply grease to the threads for easier assembly.

Note: These shock mounts feature both left-hand and right-hand threads. Use a counterclockwise rotation for installation.
