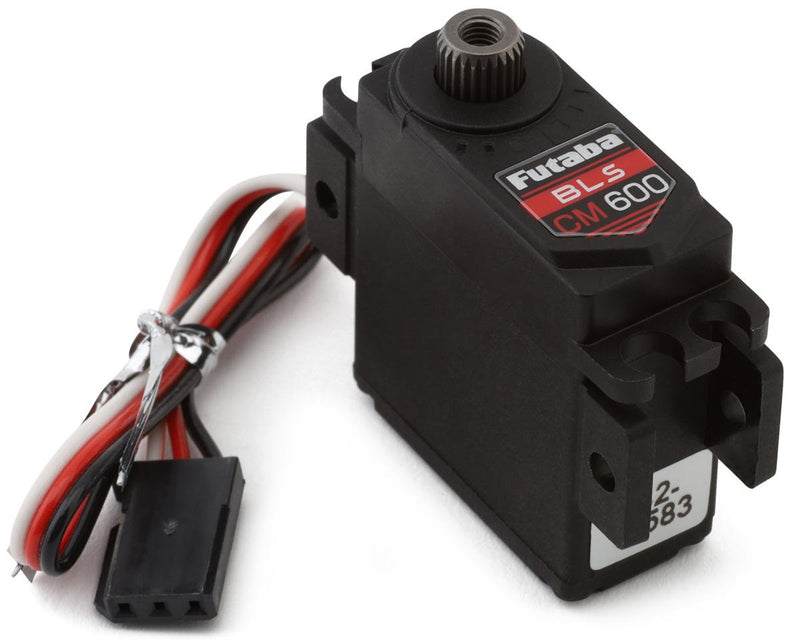

BLS-CM600 Futaba S.Bus2 Mini 1/12 High Voltage Brushless Servo

Servo Overview:

This is the BLS-CM600 mini 1/12 Scale Brushless Servo from Futaba. Designed for 1/12 scale on-road racing such as 1/12 pan cars, this brushless and high voltage capable mini servo can deliver 93oz-in of torque and 0.09sec/60° transit speed at 7.4V! Providing all the torque and speed needed in a compact and extremely lightweight profile!

Features:

• Delivers 93oz-in of torque and 0.09sec/60° transit speed at 7.4V
• High voltage capable
• Extremely compact and lightweight at only 28g
• Perfect for 1/12 surface racing
• Digital, programmable and S.Bus capable

Specifications:

• Application: 1/12 Scale On-Road
• Operating Voltage: 6.0V-7.4V
• Speed:
• @6.0V: 0.11sec/60°
• @7.4V: 0.09sec/60°
• Torque:
• @6.0V: 74.9oz-in (4.68kg-cm)
• @7.4V: 93oz-in (5.47kg-cm)
• Motor: Brushless
• Operating Temp.: -
• Dimensions(LxWxH): 1.07x0.51x1.20in (27.2x13x30.5mm)
• Weight: 0.98oz (28g)
• Operating Spline: 25T Futaba

Includes:

• (1) BLS-CM600 S.Bus2 Mini 1/12 High Voltage Brushless Servo

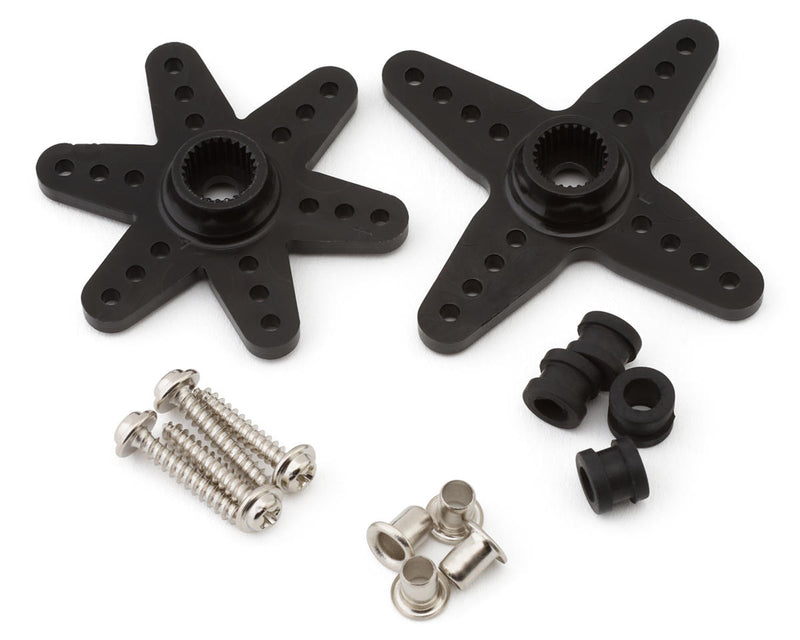

• Servo Horns and Mounting Hardware
